Default Steering rack part number

Hi all,

My rack is knackered (has some play in it), so I need to source another one.

I thought this would be easy to solve, and ordered a rack to match the ball joints I bought years ago, and what I understood was the correct rack: Austin Metro 1980-1990 (or thereabouts).

Well the rack has arrived and it's not the correct one! Damn!

I've looked at the labels on my worn rack, and they're not totally legible, and what characters I can find don't correlate with anything I can find on the internet.

Does anyone have a part number for their rack?

Help most appreciated!

Cheers

John.
Reply With Quote
Available from eBay
  #2
Old 21st September 2011, 06:20
limpabit's Avatar
limpabit limpabit is offline
Senior Member
Enthusiast

Join Date: Oct 2004
Location: Basildon, Essex
Posts: 1,800
limpabit is on a distinguished road
Default

Hi John.

Can't help with your query, but maybe give Dave a ring to see if there are any numbers on mine?

Would love to change my rack at some point to accept good fit, metric track rod ends. I take it the one you have is imperial thread. Is there much difference in the racks?
Reply With Quote
  #3
Old 21st September 2011, 06:30
alackofspeed's Avatar
alackofspeed alackofspeed is offline
Senior Member
Enthusiast

Join Date: Jul 2005
Location: Dorset
Posts: 1,180
alackofspeed is on a distinguished road
Default

Hi John,

I spoke to Dave last night, as I know he had the same problem a while back. Sadly he doesn't have a reference number for the correct rack.

Interestingly the rack I have acquired is labelled a Metro Mk1 rack, and the part number on the rack aligns with those of Drivelink racks online, yet Dave G has an identical rack which was sold to him as a Rover 200 manual rack.

Since starting this thread, I have found pictures of my rack when I first installed it, but the numbers on it (ESK09) haven't led me to an answer.

My rack is in the boot of my car, and I'm going to head to a local motor factor at lunch.

Frustrating!
Reply With Quote
  #4
Old 21st September 2011, 08:05
limpabit's Avatar
limpabit limpabit is offline
Senior Member
Enthusiast

Join Date: Oct 2004
Location: Basildon, Essex
Posts: 1,800
limpabit is on a distinguished road
Default

I'm pretty sure from memory, all those years back, it was in a QH box. If that makes any difference.
Reply With Quote
  #5
Old 21st September 2011, 12:24
alackofspeed's Avatar
alackofspeed alackofspeed is offline
Senior Member
Enthusiast

Join Date: Jul 2005
Location: Dorset
Posts: 1,180
alackofspeed is on a distinguished road
Default

Current latest suggestion is MGF...... as the track width is about right, and it's a derivative of the metro rack..... will confirm.
Reply With Quote
  #6
Old 21st September 2011, 16:45
alackofspeed's Avatar
alackofspeed alackofspeed is offline
Senior Member
Enthusiast

Join Date: Jul 2005
Location: Dorset
Posts: 1,180
alackofspeed is on a distinguished road
Default

My local factor ordered in a rack, and I can confirm it is not MGF or metro.

The search continues.
Reply With Quote
  #7
Old 21st September 2011, 20:44
bigrich's Avatar
bigrich bigrich is offline
Senior Member
Enthusiast

Join Date: Nov 2005
Location: Cheshire
Posts: 404
bigrich is on a distinguished road
Default

Hiya,

Numbers from my rack sticker are:-

B/N 8089

ES 09 RHD

0624E05


From memory I'm sure someone told me it was a Rover Metro rack modified??

Try this link:-

http://www.kellybraysteering.co.uk/p...over_16728.cfm


HTH

Rich
Reply With Quote
  #8
Old 21st September 2011, 21:38
alackofspeed's Avatar
alackofspeed alackofspeed is offline
Senior Member
Enthusiast

Join Date: Jul 2005
Location: Dorset
Posts: 1,180
alackofspeed is on a distinguished road
Default

Rich,

Thanks for the information. Maybe armed with them I will be able to resolve my dilemma.

For future reference of others, below are some pictures of my used rack alongside a metro rack.

Some numbers first:

Length of rack body from ege of pinion casting to flare of tube.

Marlin - 440 mm
Metro - 375 mm

Approx length of complete assembly from end of tie-rod to end of tie-rod

Marlin - 1130 mm
Metro - 1020 mm

Pinion shaft spline:
Marlin - 17t relatively coarse spline with one flat surface
Metro - 36t fine pitch spline with wasted centre complete circumference.


Marlin - 30 mm
Metro - 20 mm

Two racks together (Metro on right, Marlin on left)



Length of Metro rack from casting edge to flare.



Length of Marlin rack from casting edge to flare.

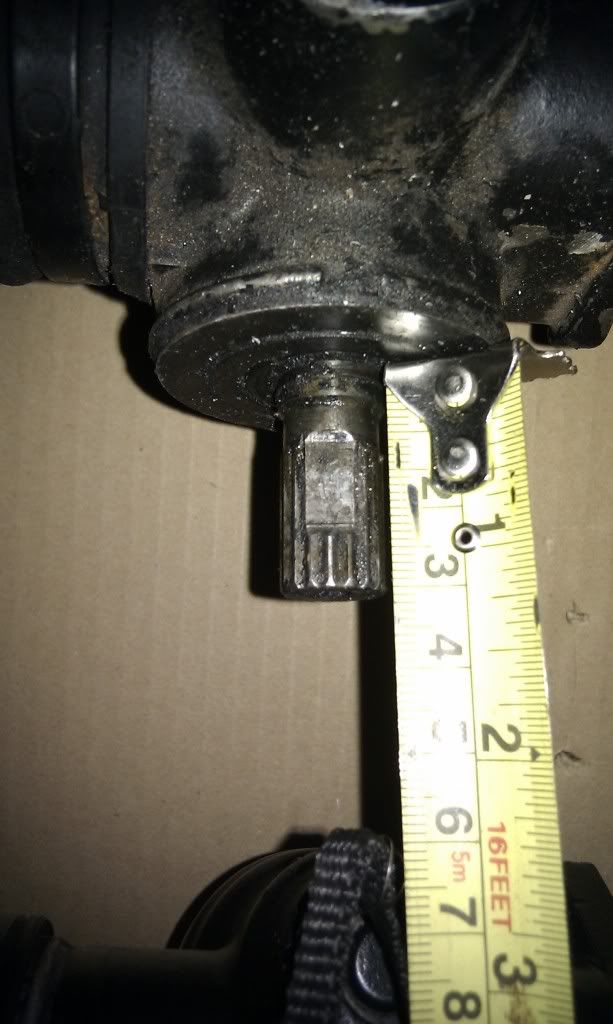

Metro spline:



Marlin spline:

Reply With Quote
  #9
Old 21st September 2011, 22:29
peterux's Avatar
peterux peterux is offline
Senior Member
Enthusiast

Join Date: Mar 2005
Posts: 2,917
peterux is on a distinguished road
Default

There are some pictures on Steve Gray's website...

http://www.stsa.co.uk/gallery/5EXi/B...-SteeringRack/
...looks like he had to add some tie rod extenders?

Early Marlin articles certainly mention they use a Metro rack.

A quick call to:
X L Steering Division
01384 405900
7-8 Gibbons Industrial Park, ,
KINGSWINFORD,
DY6 8XF

might tell you what type Steve's is?

Last edited by peterux; 21st September 2011 at 22:54.. Reason: add info
Reply With Quote
  #10
Old 21st September 2011, 22:56
alackofspeed's Avatar
alackofspeed alackofspeed is offline
Senior Member
Enthusiast

Join Date: Jul 2005
Location: Dorset
Posts: 1,180
alackofspeed is on a distinguished road
Default

Thanks for the link.

From what I can gleam of the label on Steve's rack, and the length of the pinion shaft, it's the same rack as mine.

The track rod ends are different (possibly shorter), and the steering arm is diferent (no bump-steer adjustment), which would explain the need for the extensions.

Hmmmmm.

This is a frustrating process!
Reply With Quote
  #11
Old 22nd September 2011, 11:35
alackofspeed's Avatar
alackofspeed alackofspeed is offline
Senior Member
Enthusiast

Join Date: Jul 2005
Location: Dorset
Posts: 1,180
alackofspeed is on a distinguished road
Default

Further searching has led to one conclusion - unique rack!

On this basis the rack has been sent off for refurbishment.

It's a crying shame the rack is not a standard off the shelf component, as it only complicates ownership, needlessly.
Reply With Quote
  #12
Old 22nd September 2011, 21:17
sconcia sconcia is offline
Junior Member
Kit Car Dreamer

Join Date: Mar 2006
Location: Southampton
Posts: 22
sconcia is on a distinguished road
Default

John,

Firstly, I'm assuming it was you who asked me the same question on ebay?. If not I need to get back to another John looking for steering rack info!!

My rack was a new rack from Quinton Hazell Automotive, part no ESK09. I can't remember why I was looking, but I do remember that you used to be able to go on to their web site and see it, and buy it I guess.

QH are now part of the Klarius Group and their web site (www.qh.com) is no longer as transparent but if you give them a ring I'm sure they'll be able to help.

Regards.
Reply With Quote
  #13
Old 25th September 2011, 20:45
alackofspeed's Avatar
alackofspeed alackofspeed is offline
Senior Member
Enthusiast

Join Date: Jul 2005
Location: Dorset
Posts: 1,180
alackofspeed is on a distinguished road
Default

Correct - same John.

I've tried AMK, TRW, LX / Excel, QH, and none of them sell the rack. I tried seearching for ESK09 on the QH site to no avail. Most odd.

I presume you want to sell the rack you have with your kit, but at the time asking it wasn't individually listed, so thought I'd chance that you might.
Reply With Quote
  #14
Old 28th November 2011, 05:53
limpabit's Avatar
limpabit limpabit is offline
Senior Member
Enthusiast

Join Date: Oct 2004
Location: Basildon, Essex
Posts: 1,800
limpabit is on a distinguished road
Default

Still investigating this as well. Found something intetestng on this site. Notice the picture of the two racks together. Look at the column shafts. Different lengths.

http://www.mgf.ultimatemg.com/group2...rack/index.htm

Trouble is, they are all labelled as PAS racks.
Reply With Quote
  #15
Old 28th November 2011, 20:05
alackofspeed's Avatar
alackofspeed alackofspeed is offline
Senior Member
Enthusiast

Join Date: Jul 2005
Location: Dorset
Posts: 1,180
alackofspeed is on a distinguished road
Default

It's not a MGF rack - my local motorfactor ordered one in, and it was very different to the Marlin rack. Shorter casing, shorter track rods, and different angle of pinion shaft.
Reply With Quote
  #16
Old 15th December 2011, 09:45
limpabit's Avatar
limpabit limpabit is offline
Senior Member
Enthusiast

Join Date: Oct 2004
Location: Basildon, Essex
Posts: 1,800
limpabit is on a distinguished road
Default

Just a little update. Hope it helps fellow builders.

I think I've tracked the rack down that is used. I'm still trying to find out the spline numbers. It seems to be a rack that was only used on the MG Metro/MG Turbo Metro and 6R4. It's 110CM long so still could do with some extenders.

It has M12X1.25 thread for the track rod ends. Not sure how you got the older/imperial version rack John.

Also managed to find the correct TRE's. But first, they differ from manufacture to manufacture of parts supplier.

Both M12X1.25 threads. QR2381S (Quinton Hazell) and FTR 4211 (First Line). Both for the same model of Metro. But different enough, for one not to be suitable for the 5EXI. The one you need is the First line part, as the QH taper is too short.

QH on the left, Firstline on the right.
Reply With Quote
  #17
Old 3rd January 2012, 07:53
limpabit's Avatar
limpabit limpabit is offline
Senior Member
Enthusiast

Join Date: Oct 2004
Location: Basildon, Essex
Posts: 1,800
limpabit is on a distinguished road
Default

Just for reference. My rack has the same dimensions as John's above.

Numbers are:
B/N 6471
ESK09
0104A05

Getting sent off for another inner rod fitted. I need it a bit longer and could not use extensions without quite a bit of work to the tie rod.
Reply With Quote
