Go Back   Madabout Kitcars Forum > Mad Build Area > Sammio Builds and discussions

Sammio Builds and discussions Sammio bodied car builds and specials

Reply

Thread Tools Display Modes
  #141
Old 6th November 2014, 14:05
Mister Towed's Avatar
Mister Towed Mister Towed is offline
Senior Member

Join Date: Jul 2011
Posts: 5,142
Mister Towed is on a distinguished road
Default

Quote:
Originally Posted by davecymru View Post

The only problem i ever had with no-doors was how much i killed my old drivers seat during my year of driving it! So i'll be interesting to do a compare-n-contrast in a few months
I bought a set of Herald/Vitesse floor mats from an e-bay seller. The fronts I put in the footwells but I put the rear mats on the seats and step onto them to save the upholstery. Works for me.
Reply With Quote
  #142
Old 7th November 2014, 11:37
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

thought id push on with some interior work. handbrake cover


side lifts to reveal switches



Gear box tunnel covered in 6mm foam

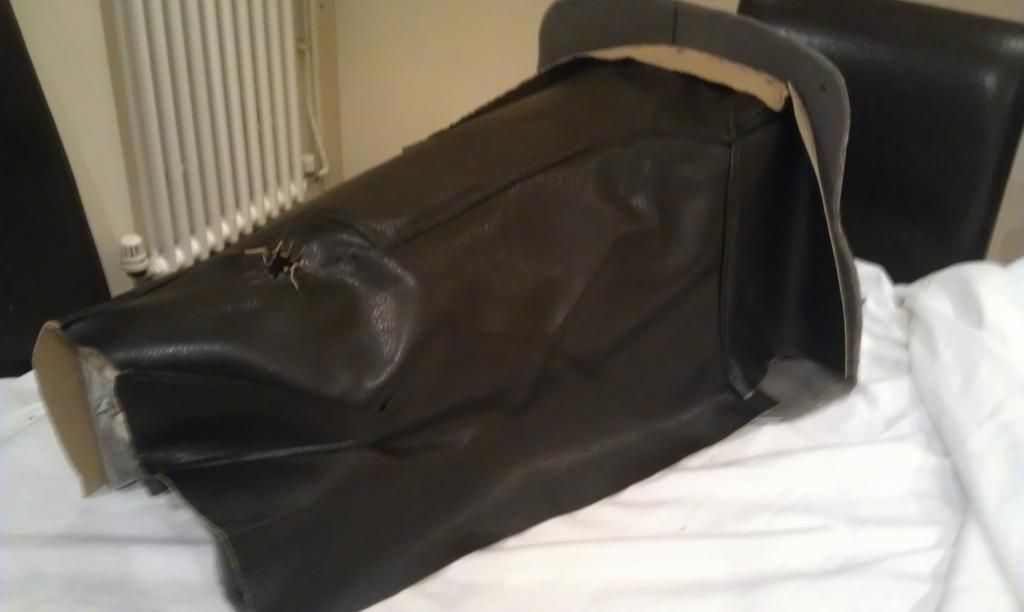

started to cut out leather but quite a complex shape
Reply With Quote
  #143
Old 7th November 2014, 11:49
Paul L's Avatar
Paul L Paul L is offline
Senior Member

Join Date: Feb 2012
Location: Wembley, London
Posts: 4,921
Paul L is on a distinguished road
Default

CarNoob - Looks like you have made good progress to both the inside & outside of your car.

Really like what you are doing with the gearbox cover.

Good luck, Paul.
Reply With Quote
  #144
Old 9th November 2014, 09:42
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

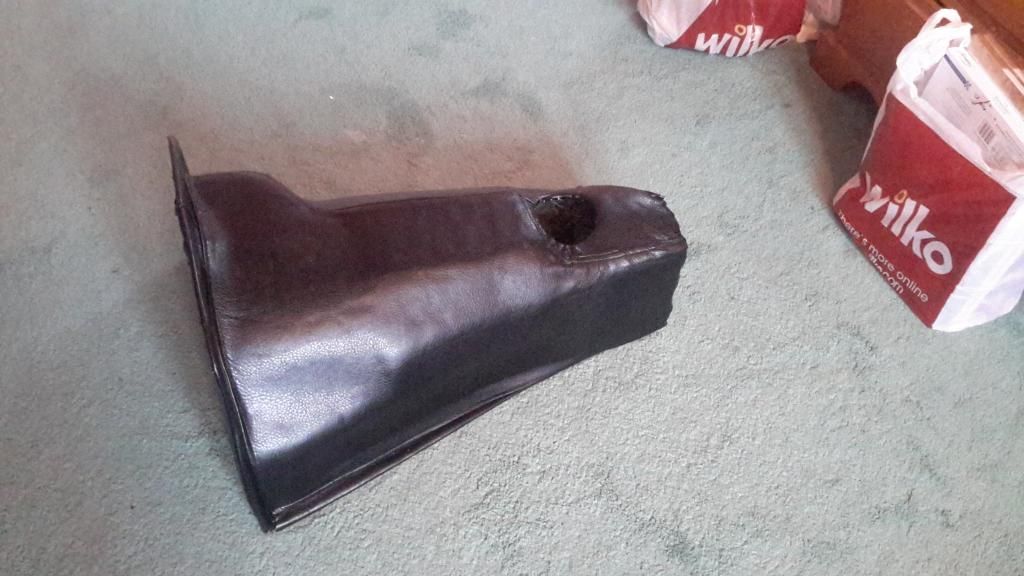

with 9 pieces of leather the pattern I made came together really well.

trim bond sticks so well you cant pull it of the foam.

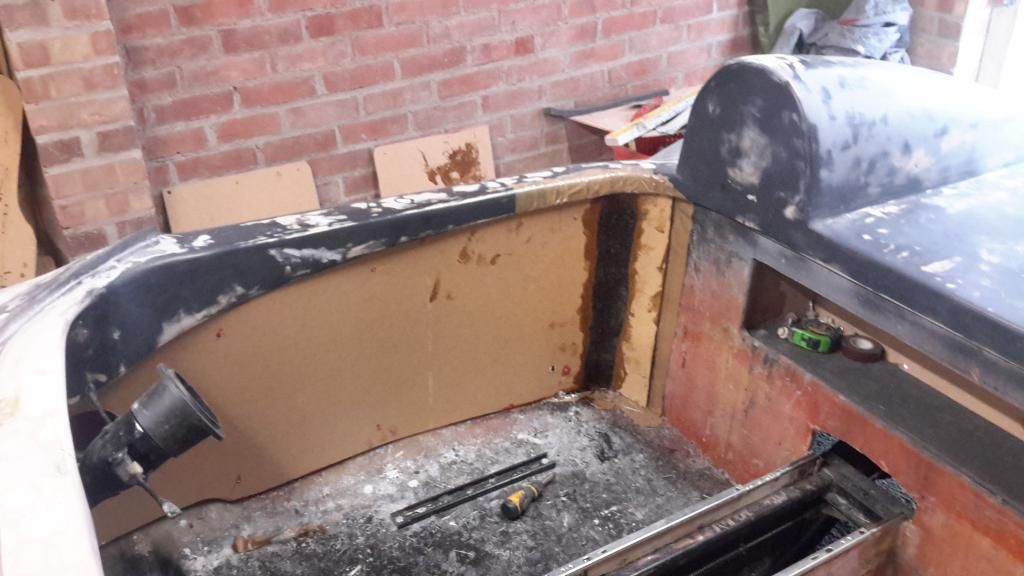

also bent some hard board for the corners and joined with fibre glass to keep the shape

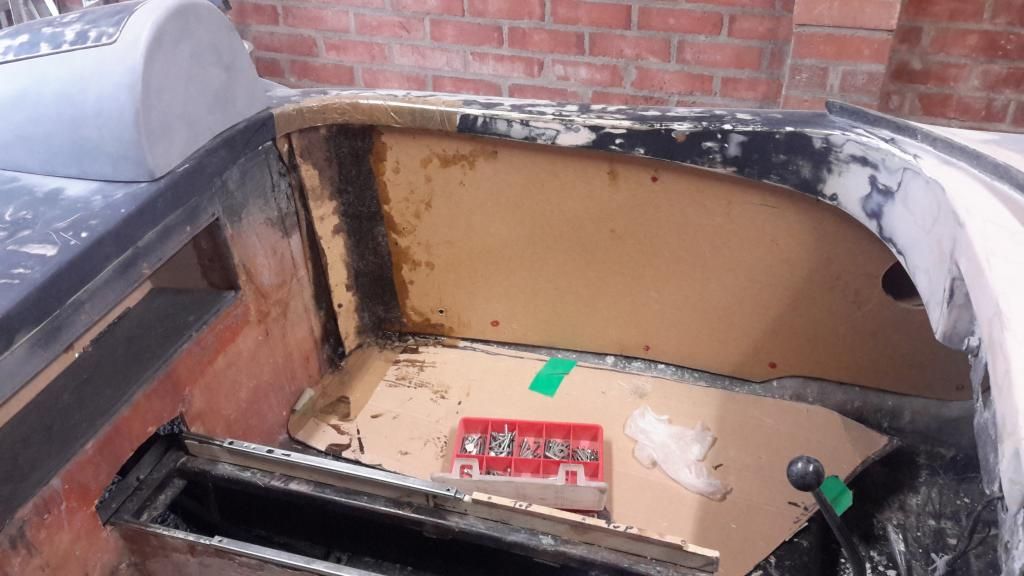

and left side

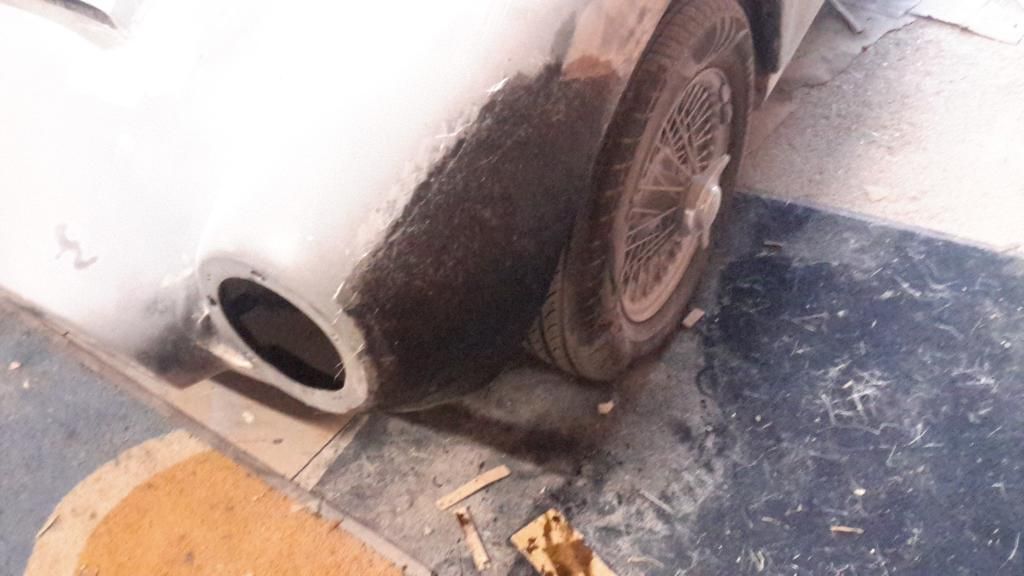

and finally added some fibreglass to the right hand wing to match the other side

then home for fire works
Reply With Quote
  #145
Old 9th November 2014, 11:52
Mister Towed's Avatar
Mister Towed Mister Towed is offline
Senior Member

Join Date: Jul 2011
Posts: 5,142
Mister Towed is on a distinguished road
Default

Nice job trimming the gearbox cover 'Noob, they're a bloody awkward shape.

I'm a bit concerned about your inner side panels though, are they hardboard?

I can see you're trying to maximise interior space, but without solid, 6mm ply inner panels bonded right up inside the shell and extending down to the floor it's highly likely that the body sides'll flex and crack when you put your weight on them getting in and out.

I say this because I have a small area in the centre of the scuttle panel just ahead of my flyscreen, directly above the servo I fitted, where there's no bracing, and it started to show stress cracks from downward pressure from the bonnet closing above it. I had to replace the rubber strip with a thinner one at that point to stop it cracking any further.



Good luck and keep up the good work!
Reply With Quote
  #146
Old 9th November 2014, 14:33
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

Its ok the sides are 6mm ply bonded in with fiberglass, I also ended up cutting out the sections I push on when getting in and out as I could hear movement. I added 6 layers of fibre glass then bonded the top piece back in now its solid. The pieces I have cut are for the foam and leather to stick to. I want them to be removable.
Reply With Quote
  #147
Old 11th November 2014, 18:38
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

back panel

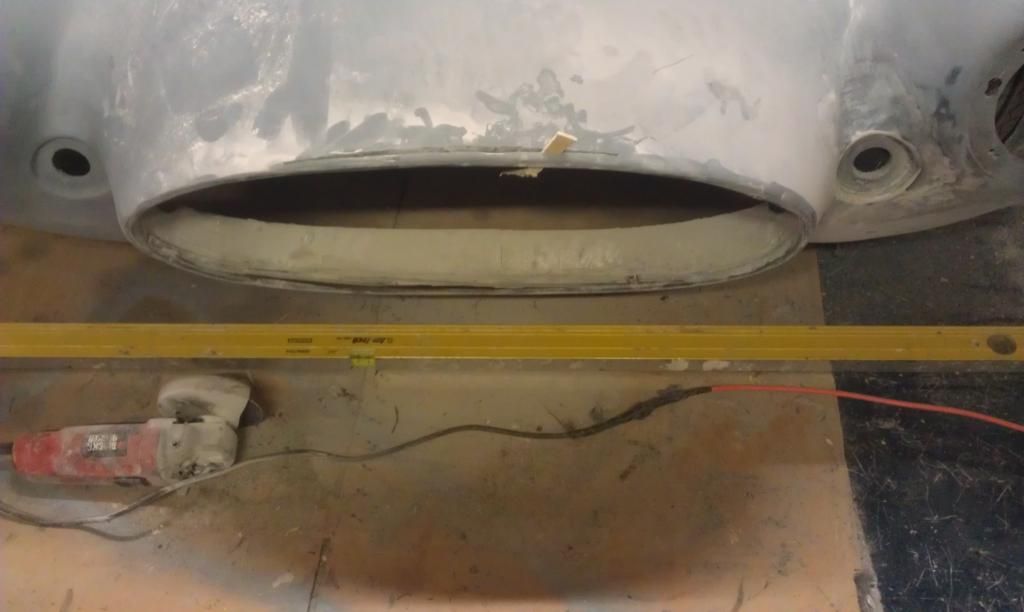

Front nose adjustment
Reply With Quote
  #148
Old 29th May 2015, 09:16
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

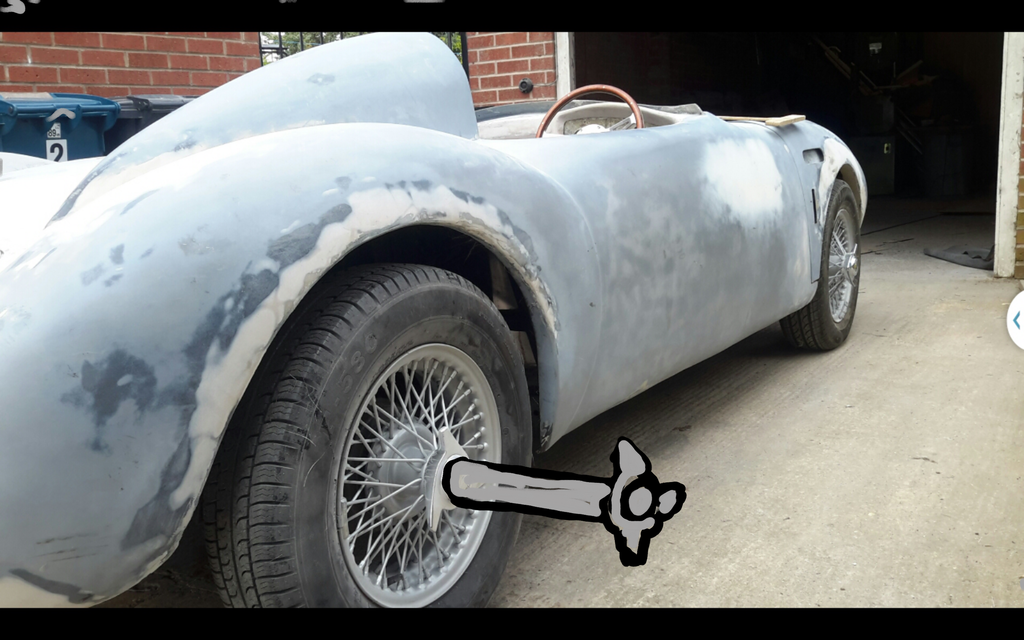

Keep chipping away. Now I under stand why spraying a car cost so much. Preparation, Preparation





I would like this finish
Reply With Quote
  #149
Old 29th May 2015, 09:26
froggyman's Avatar
froggyman froggyman is offline
Senior Member

Join Date: Dec 2011
Location: Devon
Posts: 540
froggyman is on a distinguished road
Default

The prep-work is well worth it. Looking great with all the personalised detail. What colour are you going for?
Reply With Quote
  #150
Old 29th May 2015, 09:29
Mister Towed's Avatar
Mister Towed Mister Towed is offline
Senior Member

Join Date: Jul 2011
Posts: 5,142
Mister Towed is on a distinguished road
Default

Looking good, I like the bonnet scoop and blister for some reason.

What's the slot across the rear deck for? Is it for the 007 style bullet deflector?

The finish on Mr Christmas' A352 was simply stunning, a credit to the chap who prep'd and sprayed it. Nice colour too, as chosen by the first billionaire to order a 'new' 1.2m Jaguar lightweight (Channel 4 documentary last night). Although Jaguar's hand picked spray chappie estimated around 40,000 to respray the bonnet if necessary, which is the equivalent of about ten quid to the new owner. Bargain.
Reply With Quote
  #151
Old 29th May 2015, 12:15
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

Yes what can I say. There will be a glass screen that lifts out. I'm hoping to make a hard top and the glass will lift up into this. I have made the frame and motor and it works with a mdf template. This will be changed for glass when I have figured out how the springs push two pieces of glass, to fit the two humps when it goes up/down.
Other ideas spring to mind!
Reply With Quote
  #152
Old 29th May 2015, 14:01
garyh garyh is offline
Senior Member

Join Date: Jun 2011
Location: birchington, kent
Posts: 1,767
garyh is on a distinguished road
Default

Very Ben hur... pics of hood, sounds amazing.
Reply With Quote
  #153
Old 29th May 2015, 16:23
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

froggyman

colour is going to be gloss white from Jarwel. I did look at silver birch to go with the bond theme. which I now regret as I did a sample piece on the car. I thought I had removed the paint but discovered after priming the paint reacted in a couple of places so I've had to rub one section down again yesterday.
Reply With Quote
  #154
Old 29th May 2015, 19:08
swifty's Avatar
swifty swifty is offline
Senior Member

Join Date: Dec 2013
Posts: 836
swifty is on a distinguished road
Default

The inside of the bonnet looks good, how did you prep the surface as it looks very smooth?
Reply With Quote
  #155
Old 30th May 2015, 08:45
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

Just kept rubbing down and filling .very time consuming
Reply With Quote
  #156
Old 30th May 2015, 11:44
Paul L's Avatar
Paul L Paul L is offline
Senior Member

Join Date: Feb 2012
Location: Wembley, London
Posts: 4,921
Paul L is on a distinguished road
Default

CarNoob - Shame to hear about the previous test patch paint reacting.

As it certainly looks like you have put a lot of work into getting to the primer stage & it all looks good.

Hope the rest of the painting goes without a hitch, good luck, Paul.

PS
Your hard top idea sounds very interesting too.
Reply With Quote
  #157
Old 16th June 2015, 08:22
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

ebay 3.50 from China



side vents will have indictor lights in.
Reply With Quote
  #158
Old 26th August 2015, 08:32
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

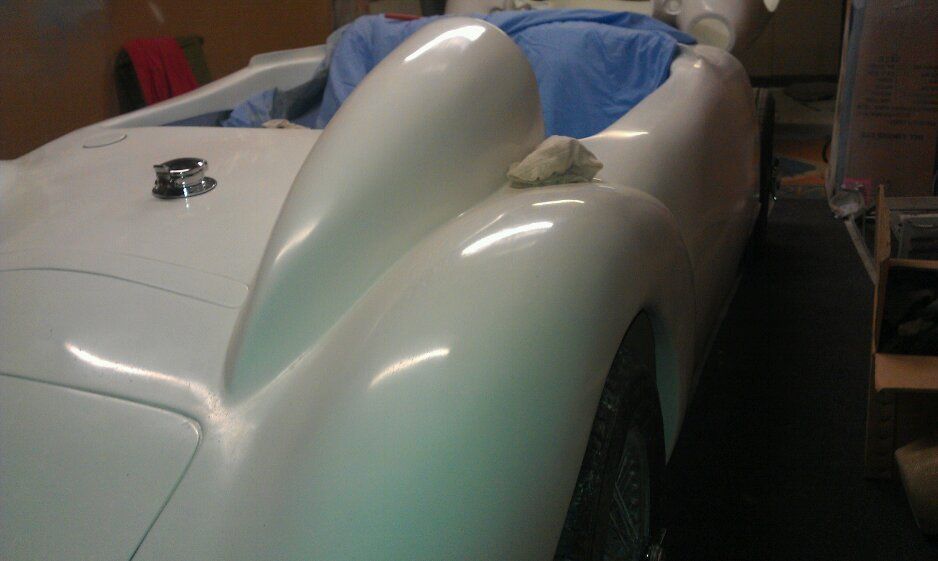

Finally Painted Jawel Pure White Gloss, Just need another ltr to finish under the bonnet.

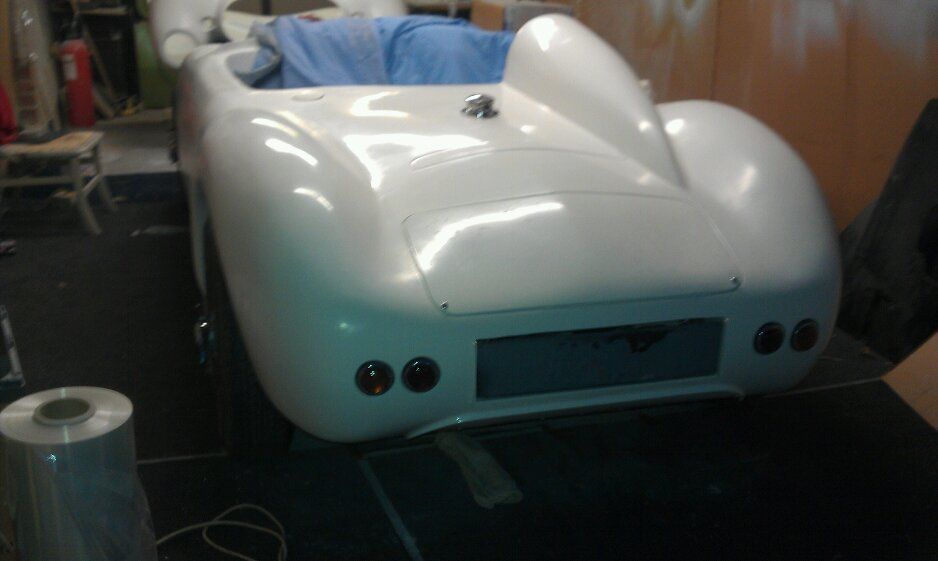

The back end really bugged me so I made a section and pop riveted to the bottom. Now nice and even.

lots of jobs on at home so I do a bit when ever I can!
Reply With Quote
  #159
Old 26th August 2015, 08:38
CarNoob's Avatar
CarNoob CarNoob is offline
Senior Member

Join Date: Sep 2012
Posts: 189
CarNoob is on a distinguished road
Default

Reply With Quote
  #160
Old 26th August 2015, 08:50
Roadster's Avatar
Roadster Roadster is offline
Senior Member

Join Date: Jun 2011
Posts: 934
Roadster is on a distinguished road
Default

That looks great
All that prep and your loss of fingertips was worth it.

Did it go without a hitch?
Reply With Quote
