Go Back   Madabout Kitcars Forum > Mad Build Area > Tribute Automotive Builds

Tribute Automotive Builds Discuss your Tribute kit build

Reply

Thread Tools Display Modes
  #621
Old 23rd March 2014, 19:04
Down&Out's Avatar
Down&Out Down&Out is offline
Member

Join Date: May 2012
Location: The past
Posts: 78
Down&Out is on a distinguished road
Default

Hilarious caption on the dog.

Good work as per!
Reply With Quote
  #622
Old 23rd March 2014, 19:15
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default

The dog? The dog?

That's Roobarb!!
Reply With Quote
  #623
Old 23rd March 2014, 19:57
Tribute Automotive's Avatar
Tribute Automotive Tribute Automotive is offline
Senior Member

Join Date: Oct 2010
Posts: 1,622
Tribute Automotive is on a distinguished road
Default

Brilliant work Scottie. Almost seems a shame to stand on them to get in and out of the car!
Reply With Quote
  #624
Old 23rd March 2014, 21:18
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default

I made them a bit shorter than normal to give myself about 9 or 10 inches in front of the seat so I don't have to stand on them!!!

Watch this space and you'll see.

Didn't put all that work into them to trample the buggers flat!!!!
Reply With Quote
  #625
Old 24th March 2014, 18:29
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default Seat backs

Spent the whole day stitching the seat backs together, and making the plastic backing pads to fit them to.

It is a much more difficult task than I first thought,
(seems like the story of this build!)

But I am closer to the end of it.

Just about everything I put on the car, I try to plan so that it removes easily,
the rears seats are no exception. Although he alloy curved seat backs will unscrew, (8 million screws) I have mounted the foam on the plastic bits I originally used as a pattern for the alloy.

They are held in by only 4 bolts with wing nuts for ease of removal.

I have to somehow make the leather fit the curve, and then colour it.

I thought I could do all this in two days, but now I don't think so.

Here's where I'm at now:

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]
Reply With Quote
  #626
Old 24th March 2014, 19:09
y cymro's Avatar
y cymro y cymro is offline
Senior Member

Join Date: Apr 2013
Location: Swansea
Posts: 803
y cymro is on a distinguished road
Default

Hi Scottie
They look great. What is this Tetrosyl paint you used? Is it specially for painting leather because it does a good job.
Reply With Quote
  #627
Old 24th March 2014, 19:36
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default

It's for painting cars and other things, but usually I use a"proper" leather colouring agent at around 60 or 70 quid,
but this paint was only 5.99.

As I said I did not actually "paint" the leather, but used the paint to colour it. The difference is in the technique used to apply it.

When I sprayed on the paint, I then worked it into the leather with a brush and rag, so the paint does not "sit" on the surface but is absorbed by the leather.
Like you say it has done a good job.

I have so much leather to experiment on, and I did a lot of dyeing before I finally did the seats.
I scratched and scraped with my thumbnail to try to get the colour to come off, but it wouldn't, as it had been absorbed correctly.

Bit of a long winded answer, but hopefully may help!

Last edited by Scottie22; 24th March 2014 at 19:37.. Reason: typo
Reply With Quote
  #628
Old 24th March 2014, 21:09
Alpha Alpha is offline
Senior Member

Join Date: Jul 2011
Location: Belgium
Posts: 103
Alpha is on a distinguished road
Default

Scottie, I can see how you would reach the inboard wingnuts to release the seat backs - but how can you possibly get your arm far enough through the centre opening to release those outboard?
Reply With Quote
  #629
Old 24th March 2014, 21:20
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default

Its quite easy to reach, believe me!
Reply With Quote
  #630
Old 24th March 2014, 22:10
Mister Towed's Avatar
Mister Towed Mister Towed is offline
Senior Member

Join Date: Jul 2011
Posts: 5,214
Mister Towed is on a distinguished road
Default

Wonder how many others panicked and grabbed for their gas mask when you posted the 'red red red' comment...



Great job on the upholstery btw, it's the one job I (mostly) farmed out to a pro. as my last attempt at trimming left me glued to the inside of a vw beetle.

Last edited by Mister Towed; 24th March 2014 at 22:12.. Reason: image didn't appear
Reply With Quote
  #631
Old 25th March 2014, 10:54
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default

Thanks Mr T.
I'm having major problems trying to do the seat backs!!
Not even sure if its do-able its that difficult right now!
I'll persevere...........
Reply With Quote
  #632
Old 25th March 2014, 12:26
WorldClassAccident WorldClassAccident is offline
Senior Member

Join Date: Nov 2011
Posts: 3,463
WorldClassAccident is on a distinguished road
Default

Check out the American customer car upholstery How To videos. I remember on once showing how to upholster a convex seat back but can find the link. Be ready to watch a lot of dross as well though
Reply With Quote
  #633
Old 25th March 2014, 13:45
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default

I'll do that WCA,
however, convex is easy, concave, another story!
Reply With Quote
  #634
Old 25th March 2014, 15:38
WorldClassAccident WorldClassAccident is offline
Senior Member

Join Date: Nov 2011
Posts: 3,463
WorldClassAccident is on a distinguished road
Default

Convex seat back - concave seat front

It was like sitting inside 2/3rds of an eggshell
Reply With Quote
  #635
Old 25th March 2014, 17:48
Mister Towed's Avatar
Mister Towed Mister Towed is offline
Senior Member

Join Date: Jul 2011
Posts: 5,214
Mister Towed is on a distinguished road
Default

Quote:
Originally Posted by Scottie22 View Post
Thanks Mr T.
I'm having major problems trying to do the seat backs!!
Not even sure if its do-able its that difficult right now!
I'll persevere...........

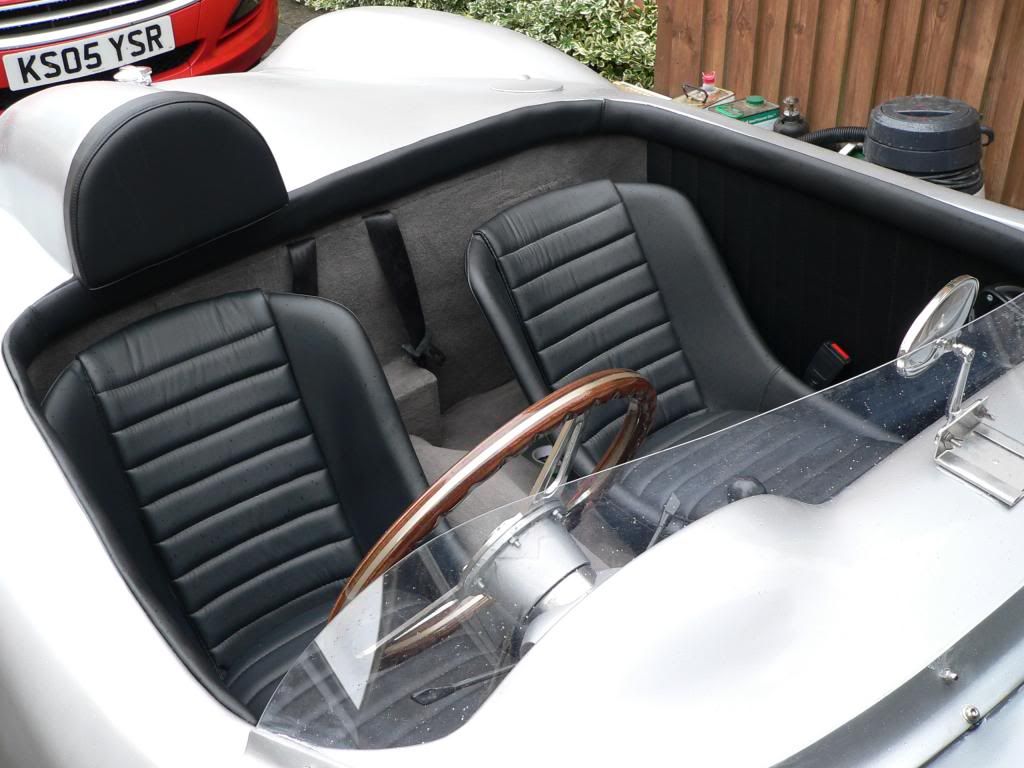

Professionals tackled mine by covering the back and sides first, glueing the leather over thin foam, then adding a 'floating' centre section that runs from top to bottom. Hope you can see what I mean from these pics -



Reply With Quote
  #636
Old 25th March 2014, 18:40
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default

And very nice too! I see how they've done it, but I don't think it will help me as I have already stitched up what I want, ( so don't have the option they had)
And I have to make what I already have look half reasonable when its in place!
It will be awkward, but I now know its do-able, which in my case is most of the battle over. Just gotta do it now!
Reply With Quote
  #637
Old 26th March 2014, 21:03
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default Seat saga

My aim today was to finish the drivers rear seat back.

It proved far too difficult to finish in a day, but I made slow progress.

At least I did move forward. The passengers one will be faster and easier, as I will know exactly what to do, whereas now I am learning as I go, blind leading the blind and all that stuff!

Just two pics:

[IMG][/IMG]

[IMG][/IMG]
Reply With Quote
  #638
Old 26th March 2014, 21:16
Paul L's Avatar
Paul L Paul L is offline
Senior Member

Join Date: Feb 2012
Location: Wembley, London
Posts: 4,945
Paul L is on a distinguished road
Default

Scottie - It does sound like you are having a complete nightmare.

However, it also sounds like you are going to do whatever it takes to get the job done properly.

It is already clear that these seats are going to be one of the stand out features of your car.

So stick with it and based on your previous work, I know that you will end up doing a great job.

Good luck, Paul.
Reply With Quote
  #639
Old 27th March 2014, 09:37
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default

Kind words Paul!

Think I need that right now!
What a pain these seats are!

It will be a compromise I think, but isn't everything?

Whatever they look like they will be comfortable that's for sure!
Reply With Quote
  #640
Old 27th March 2014, 14:34
Scottie22 Scottie22 is offline
Senior Member

Join Date: May 2013
Posts: 2,161
Scottie22 is on a distinguished road
Default Seat saga.

The aim today was the same as yesterday, which was to finish the drivers rear seat back and get it red.

Today I achieved that. Considering that I had never before designed and made seats from scratch, its not bad for a first attempt.

Similar to the seat bases, its not perfect, and has creases and a few bumps, But by and large I am reasonably pleased with it.

I will tackle the passengers one another day!

Just about had a gut-ful of seats right now.

[IMG][/IMG]

[IMG][/IMG]

[IMG][/IMG]
Reply With Quote
